High-Accuracy Concrete Staircase STEP Model

// PROJECT OVERVIEW

Sub-2 mm staircase model for glass railing fabrication

The customer scanned newly constructed concrete staircases and needed a very accurate 3D model for the installation of glass railings. The geometry had to represent the real built condition, including stair flights, landings, edges and local construction deviations.

SPM3D received the scan data as an E57 point cloud and reconstructed the staircases as a clean CAD solid model. The final deliverable was provided in STEP format so the railing contractor could use it directly for detailed design, coordination and fabrication preparation.

Because the model was intended for glass railing installation, quality control was a central part of the work. Cloud-to-model comparison screenshots and deviation histograms confirm that the reconstructed geometry achieved less than 2 mm accuracy across the main staircase surfaces.

// MODELING WORKFLOW

E57 cloud reviewThe point cloud was checked for coverage, alignment and usable stair-edge detail before modeling.

Solid reconstructionFlights, landings and concrete edges were reconstructed as precise CAD solids.

STEP deliveryThe final model was exported to STEP for downstream railing design and fabrication workflows.

C2M verificationCloud-to-model distances and histograms were used to verify the sub-2 mm accuracy target.

// PROJECT IMAGES

High-accuracy CAD model of concrete staircases in AutoCAD — STEP MODEL OVERVIEW

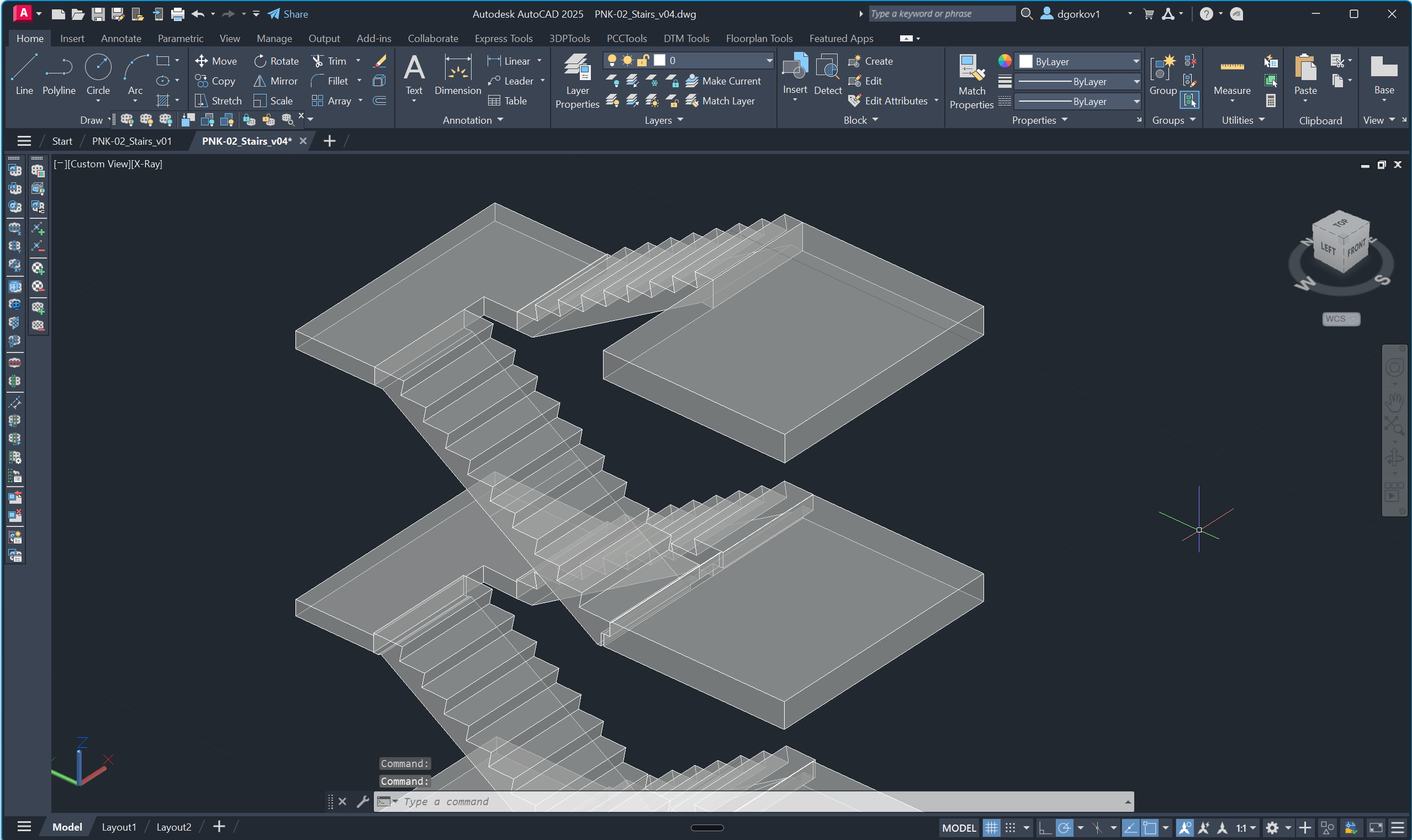

Detailed staircase solid model prepared from E57 point cloud — DETAILED STAIRCASE GEOMETRY

Cloud-to-model signed distance comparison for the staircase model — CLOUD-TO-MODEL COMPARISON

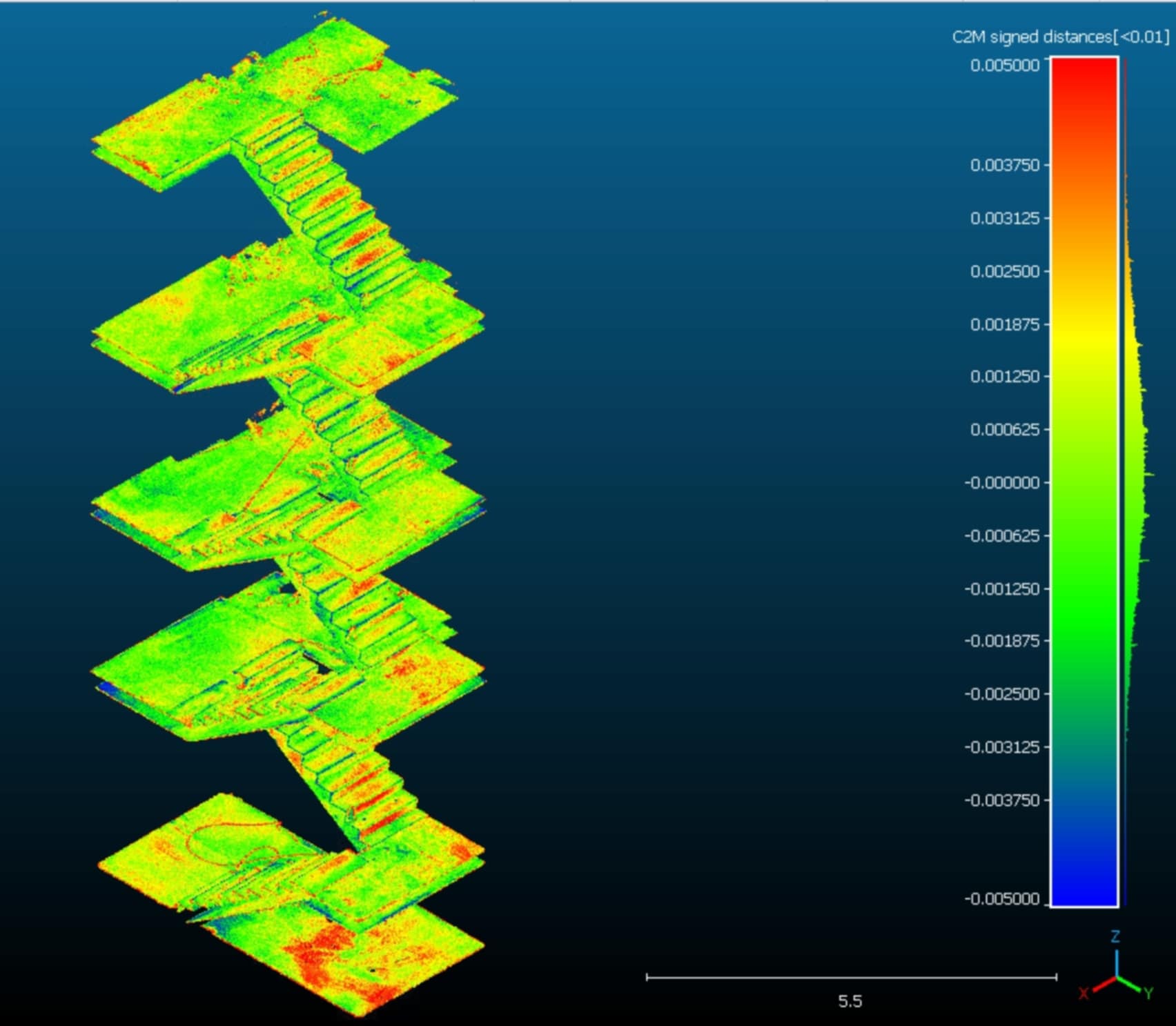

Close view of point cloud to STEP model comparison with deviation colors — SUB-2 MM SURFACE FIT CHECK

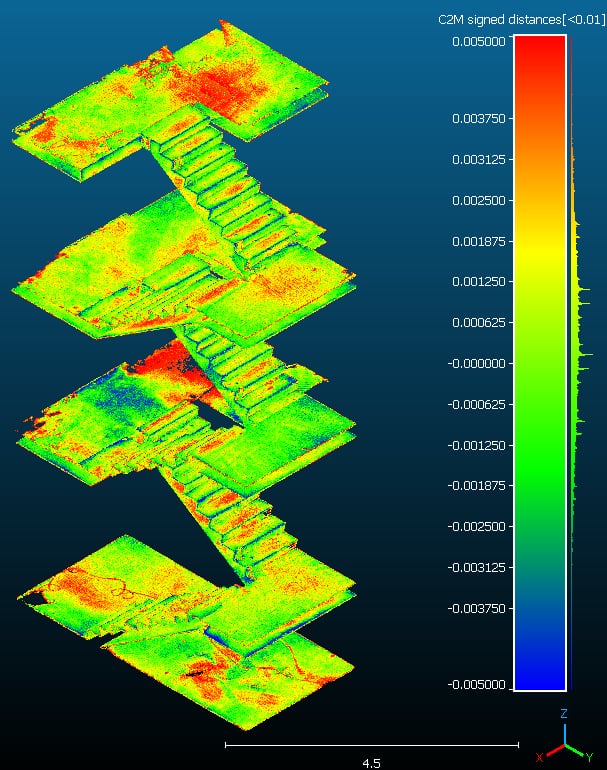

Angled comparison of staircase point cloud and final model — DEVIATION MAP - FULL STAIRCASE

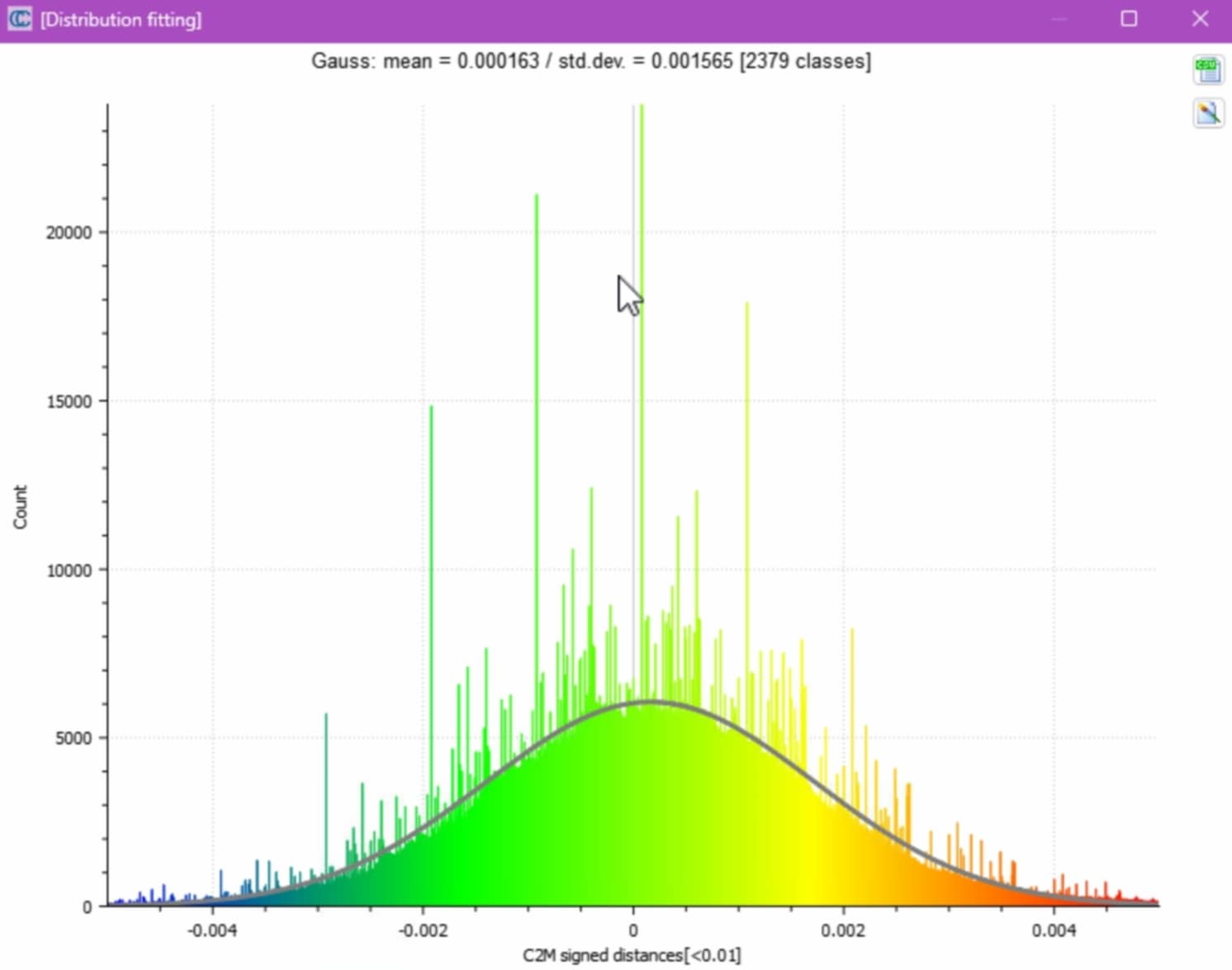

Deviation histogram for concrete staircase cloud-to-model comparison — DEVIATION HISTOGRAM 1

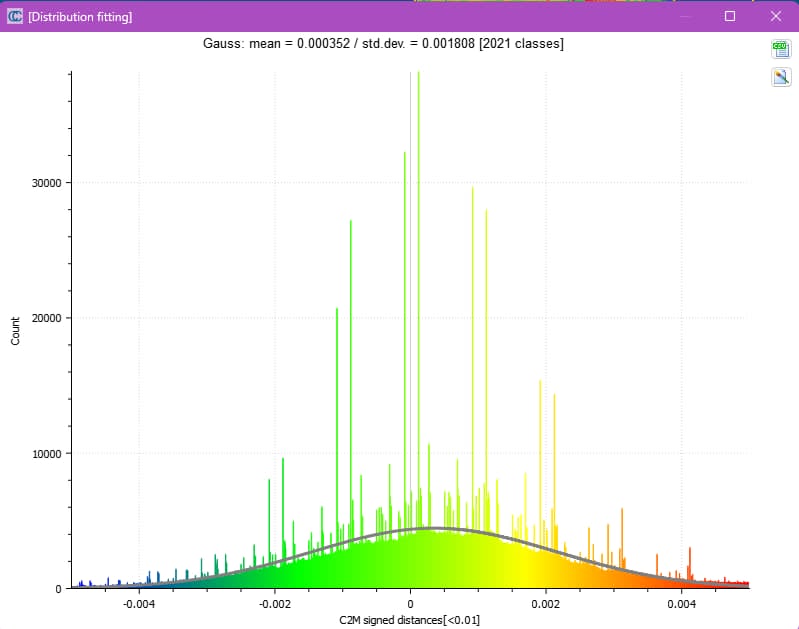

Second deviation histogram for staircase cloud-to-model comparison — DEVIATION HISTOGRAM 2

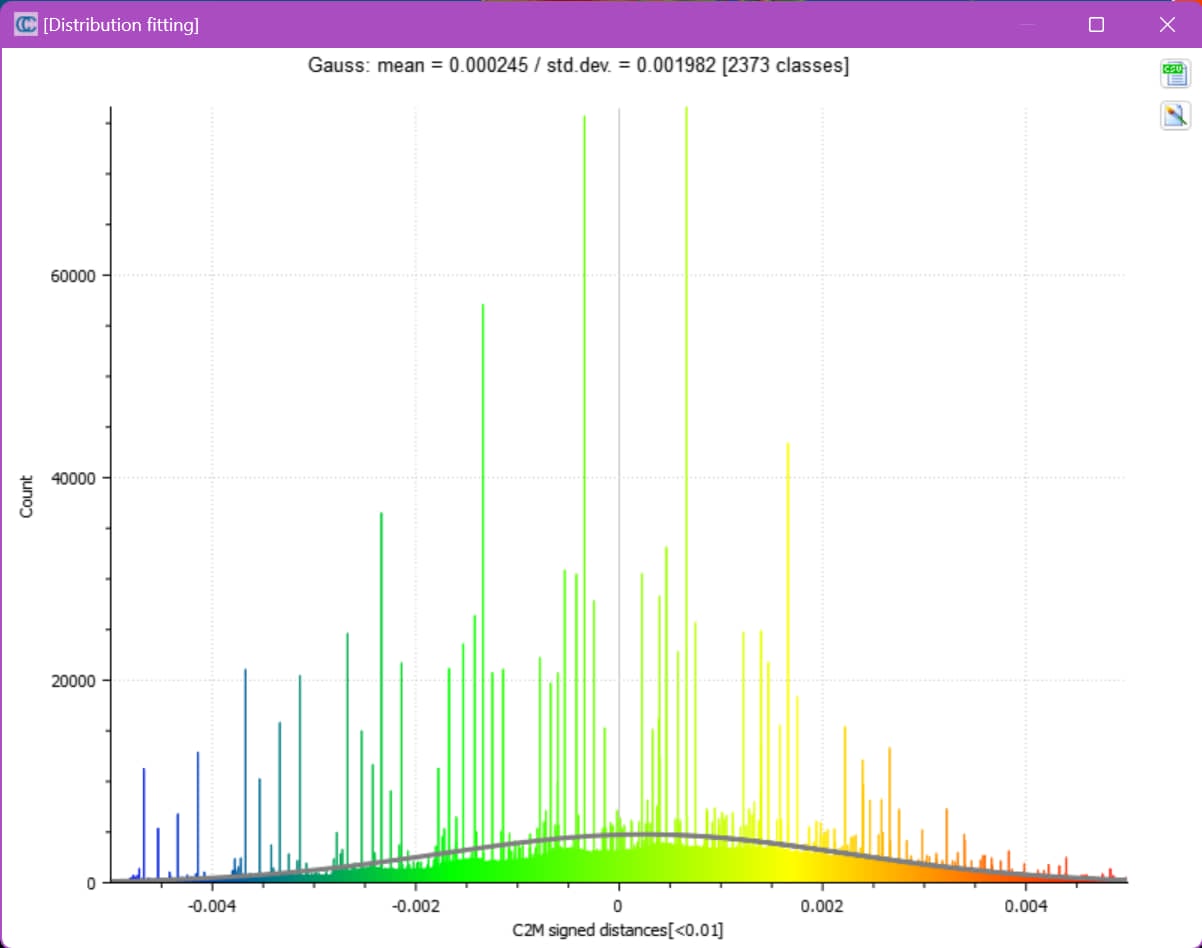

Third deviation histogram for staircase cloud-to-model comparison — DEVIATION HISTOGRAM 3

Sub-2 mm staircase model for glass railing fabrication
